Modules

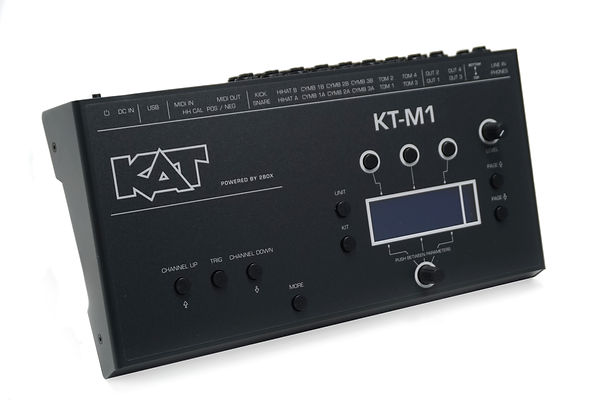

KT-M1 Professional Drum Module
Muzzio Drums is proud to offer the KT-M1, a Module with exceptional trigger adjustment, open source architecture, allowing for endless possibilities of Drum and percussion sounds. With a very simple interface and no menu diving, allow you to get to creating quickly. Complete your Muzzio Drums kit with this module or also available separately.
KT-M1 SOUND MODULE (built by 2Box)
The module has 4GB of sounds built in. That’s more memory than most of the drum modules on the market. It is also possible to use a third party upgrade to expand the module to a whopping 32GB of sounds.
What makes this module so special is its ability to play buzz rolls and crescendos, thanks to multi sampled layers. You will be amazed just how realistic this module can sound.
There is a PC and MAC Editor, allowing you to create your own sounds and loops. The KT-M1 accepts wav files and converts them to the module’s proprietary format. You can download and upload them directly into the module via the USB port.
Includes plastic mounting bracket.
Specifications
Drum Kits
99 Kits (more can be added)
Pad Inputs
KICK
SNARE (3 Zones)
TOM 1
TOM 2
TOM 3
Tom 4
HI-HAT (2 Zones
)HI-HAT CONTROL
CRASH (2 Zones)
RIDE (3 Zones)
Connection Jacks/Interfaces
OUTPUT L/R and 3&4
PHONES: 1/4"
AUDIO IN: TRS 1/4"
MIDI in and out
USB: 2.0 Type B connector (High Speed)
Power
12 VDC
600mA
Dimensions & Weight
Dimensions:197 (W) x 144 (D) x 73 (H) mm
Weight:1.1 kg
Accessories
AC adapter
Stand adapter
Quick start guide
The specifications and/or appearance of this unit are subject to change without prior notice.
